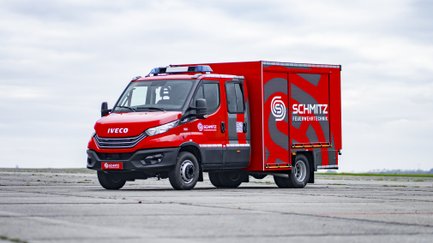

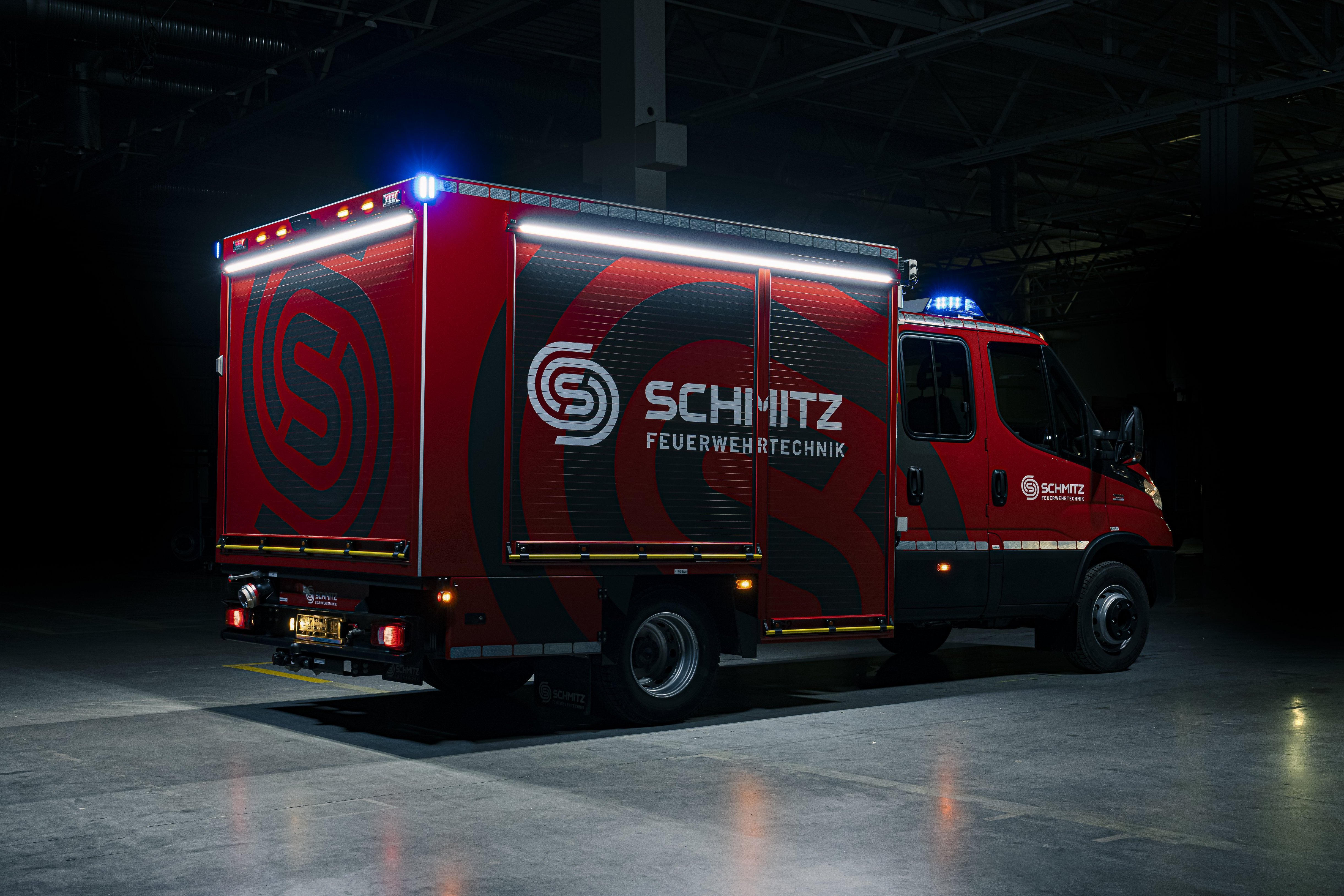

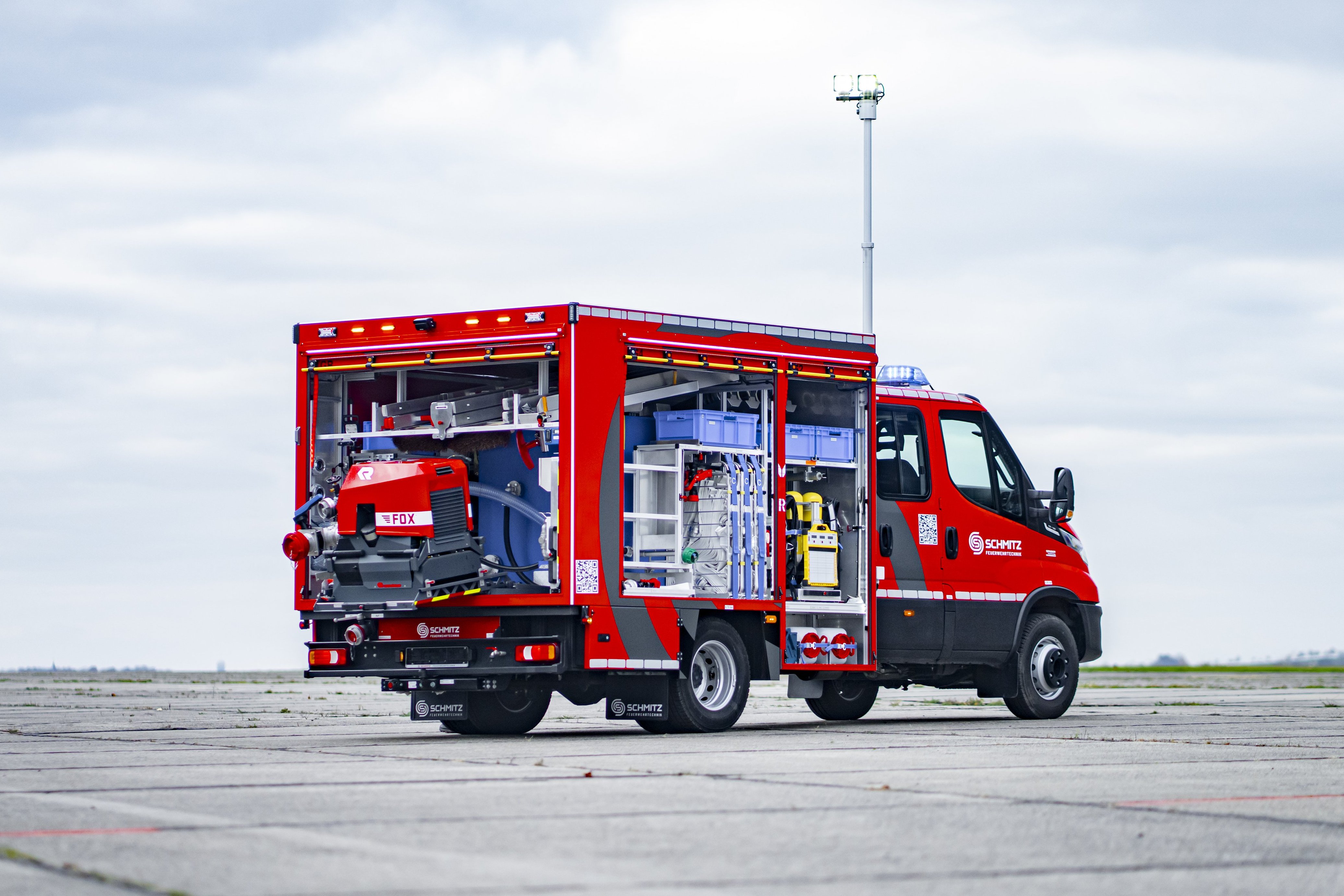

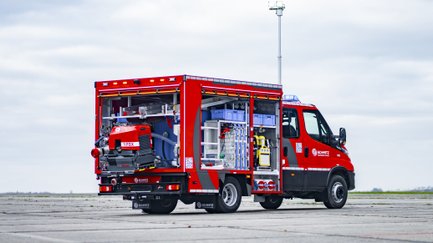

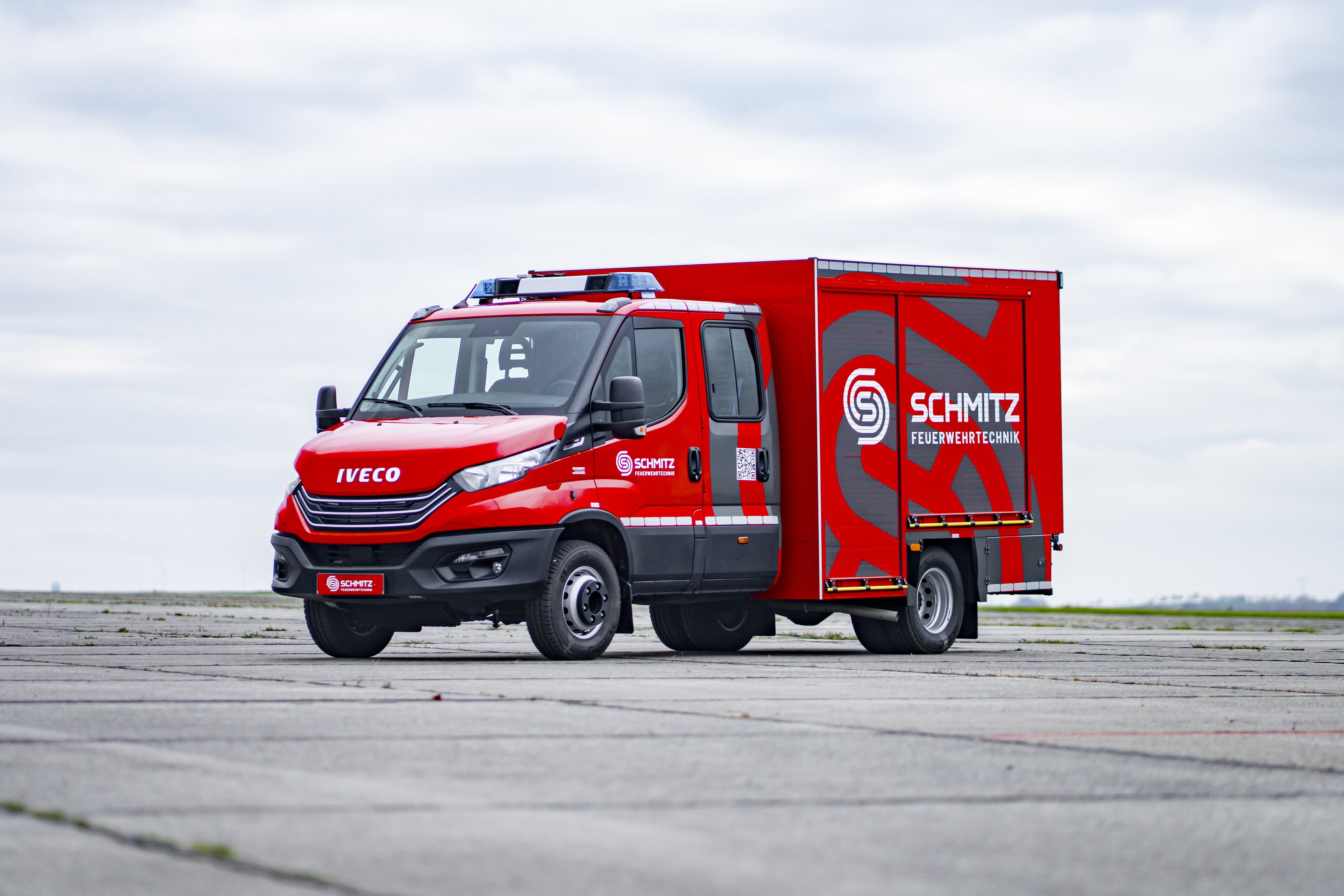

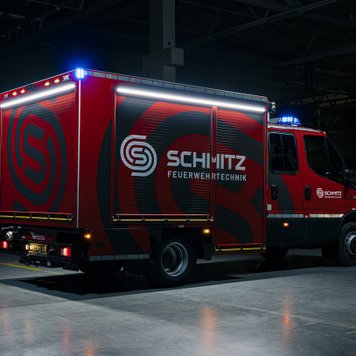

Our vehicles are custom-built with a high level of craftsmanship to meet customer specifications. Our flexible aluminum body design allows us to tailor the vehicles to meet the specific needs and requirements of our customers. Each vehicle offers a high level of safety for the crew thanks to a certified cabin, as well as ease of use through simple and intuitive controls.
We are able to fully meet the regulatory requirements for a TSF at all times.
Technical data
| PUMPER TSF | |
|---|---|
| Chassis | Iveco Daily 60C 21H 4x2 - Euro 6e |
| Cabin | Driver and crew compartment (1+5) |
| Body | Schmitz aluminium lightweight onstruction |
| Control system | Inomatic® control (CAN bus control unit) |

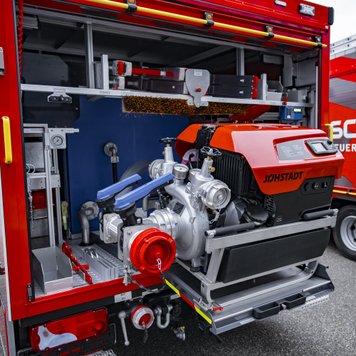

| Pump | PFPN 10-1000 |
| Standard | DIN 14530-16 |
| Equipment load | Standard equipment load as per Table 1 |
| Lighting | Light mast for up to 4 floodlights |
| Dimensions | L 6,000 mm x W 2,300 mm x H 2,600 mm |
| Wheelbase | 4,350 mm |
| Permissible total weight | 4,750 kg |
| Optional | 2 compressed air breathing qpparatuses |
All information is provided without warranty. Subject to change.
